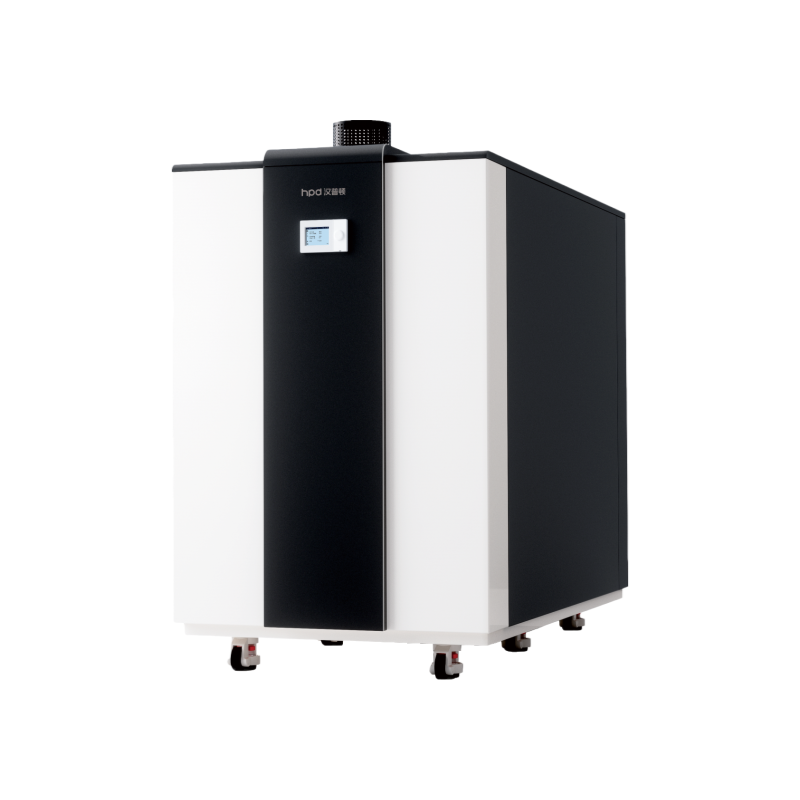

Fully premixed low nitrogen condensing modular furnace
◎ High thermal efficiency up to 108%;
The minimum nitrogen oxide emission is 10mg/m;
The flue gas temperature can be as low as 35 ° C;
Remote network driven control;
◎ Small specifications and dimensions, occupying a small area of only 1.35m for a 1-ton boiler;
Ultra strong corrosion resistance of silicon aluminum alloy heat exchangers;
The metal fiber stainless steel surface burner transfers heat more efficiently;
Implement multiple modular parallel combinations for greater energy efficiency, reliability, and safety;
According to the environment, temperature, and usage requirements, the input power can be adjusted by 15-100% stepless frequency conversion, which is efficient and energy-saving;
The temperature difference between the flue gas temperature and the boiler return water using condensation environmental protection technology can reach 3-5 ° C;
◎ Fully automatic pre mixing technology achieves the optimal ratio of gas and air for complete combustion;
◎ It can be matched with building automation systems and can simultaneously control the temperature of various areas, domestic hot water temperature, swimming pool heating, and solar assisted heating systems.
